Amp. Chassis Ch= RS-171D

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1960 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 85883
    • alternative name: RCA Manufacturing || Victor Talking Machine

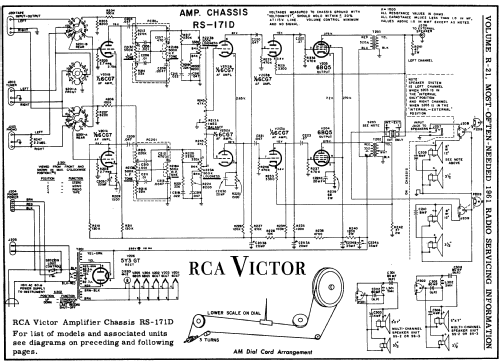

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • from Radiomuseum.org
  • Model: Amp. Chassis Ch= RS-171D - RCA RCA Victor Co. Inc.; New
  • Shape
  • Chassis only or for «building in»
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 21, 1961
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
