Amplifier MI-12214

Amplifier MI-12214; RCA RCA Victor Co. (ID = 1521981) Ampl/Mixer Amplifier MI-12214; RCA RCA Victor Co. (ID = 1521982) Ampl/Mixer
Amplifier MI-12214; RCA RCA Victor Co. (ID = 1521983) Ampl/Mixer Amplifier MI-12214; RCA RCA Victor Co. (ID = 1521984) Ampl/Mixer
Amplifier MI-12214; RCA RCA Victor Co. (ID = 1521985) Ampl/Mixer Amplifier MI-12214; RCA RCA Victor Co. (ID = 1522010) Ampl/Mixer
Amplifier MI-12214; RCA RCA Victor Co. (ID = 2493731) Ampl/Mixer
Use red slider bar for more.
Amplifier MI-12214; RCA RCA Victor Co. (ID = 1521981) Ampl/Mixer

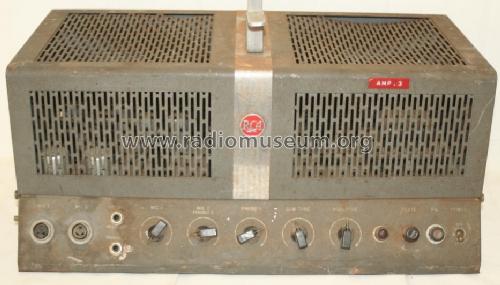

RCA RCA Victor Co.: Amplifier MI-12214 [Ampl/Mixer] ID = 1521981 933x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier MI-12214, RCA (RCA Victor Co. Inc.); New York (NY):
aus ebay, #181210385932, Verkäufer lizzie07615

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1940 Category: Audio Amplifier or -mixer
Valves / Tubes 11: 6J7 6J7 6J7 6C5 6C5 6L6 6L6 6L6 6L6 5Z3 5Z3
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 50 W (unknown quality)
from Radiomuseum.org Model: Amplifier MI-12214 - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Notes

PA amplifier with 3 inputs: Mic 1, Phono 1, Mic 2 / Phono 2.

Mentioned in -- Original-techn. papers.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
