Amplifier MI-9335-A

Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1958626) Ampl/Mixer Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1958628) Ampl/Mixer
Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1964591) Ampl/Mixer Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1964592) Ampl/Mixer
Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1964593) Ampl/Mixer Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1964594) Ampl/Mixer
Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1964595) Ampl/Mixer Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1964596) Ampl/Mixer
Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1986673) Ampl/Mixer Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1986674) Ampl/Mixer
Use red slider bar for more.

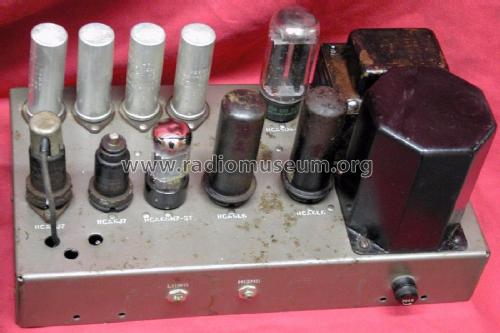

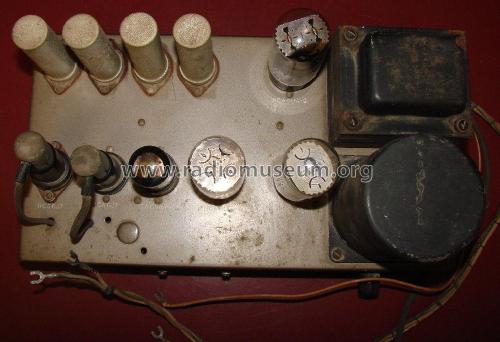

Amplifier MI-9335-A; RCA RCA Victor Co. (ID = 1958626) Ampl/Mixer
RCA RCA Victor Co.: Amplifier MI-9335-A [Ampl/Mixer] ID = 1958626 960x504
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier MI-9335-A, RCA (RCA Victor Co. Inc.); New York (NY):
aus ebay, #381529417307, mit Erlaubnis des Verkäufers jrcradio

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1945 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 6J7 6J7 6SN7GT 6L6 6L6 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Amplifier MI-9335-A - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 13.5 x 6.5 x 7.5 inch / 343 x 165 x 191 mm
Notes

Commercial power amplifier. Tube 6SN7GT is on the market not earlier than 1941 or 1942.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Here you find 4913 models, 2892 with images and 3995 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
