For model AP-937 Duo-Rectron, RCA (RCA Victor Co. Inc.); New York (NY):

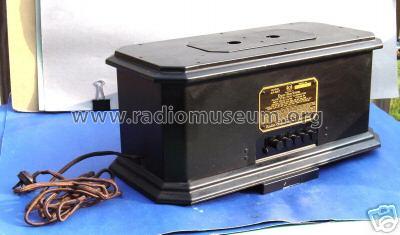

Picture from eBay

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1925/1926 Category: Power supply/conditioner or battery or charger

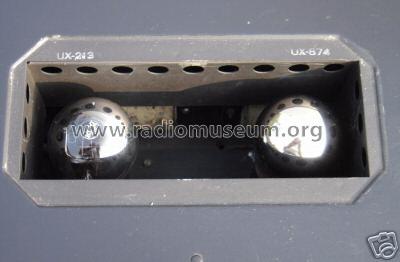

Valves / Tubes 1: UX213 UX874
Wave bands - without
Details Power: B-Battery Eliminator
Power type and voltage Alternating Current supply (AC) / 60 cycles: 110 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: AP-937 Duo-Rectron - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

B-battery eliminator, supplies 22.5, 45, 90 and 135 volts.

The UX213 was later changed to a 280 but we don't put that into the tube line up as a replacement because the 280 (80) arrived later in the market than this model.

Price in first year of sale 65.00 $
External source of data Ernst Erb

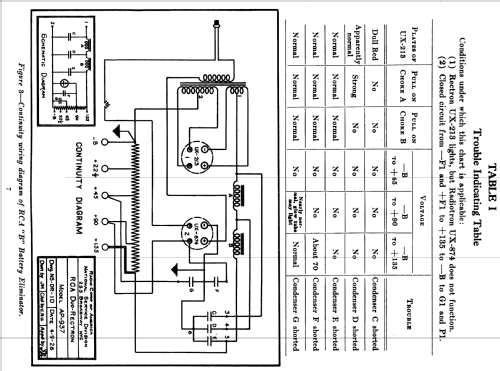

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

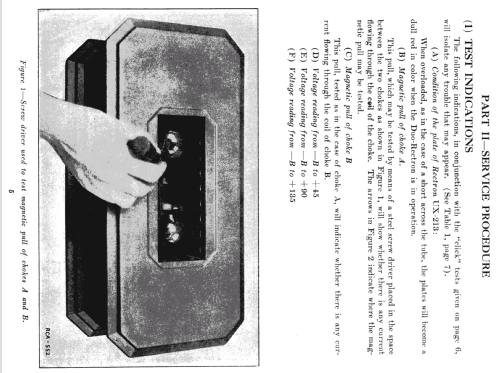

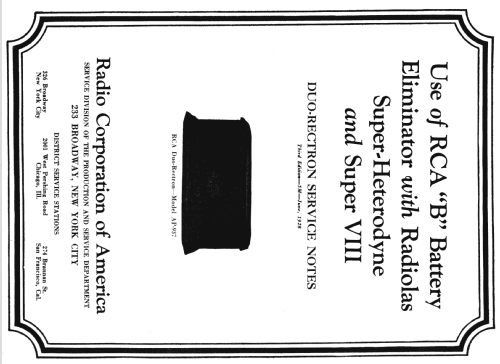

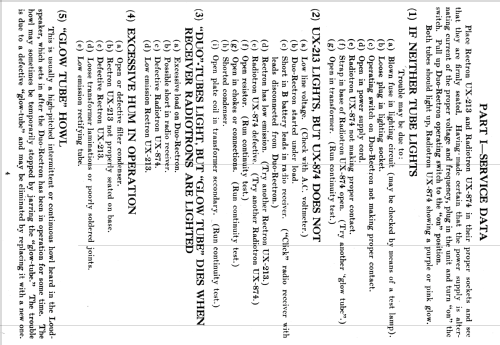

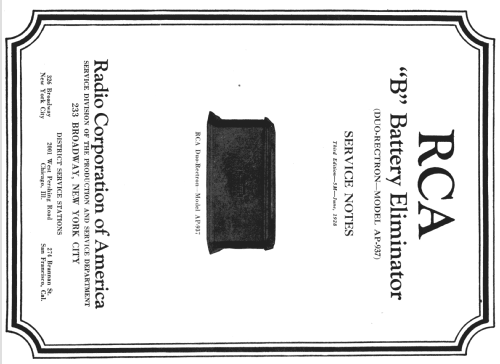

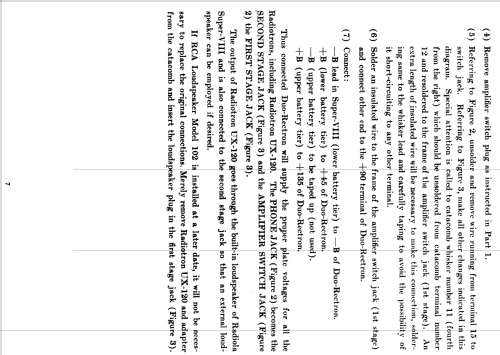

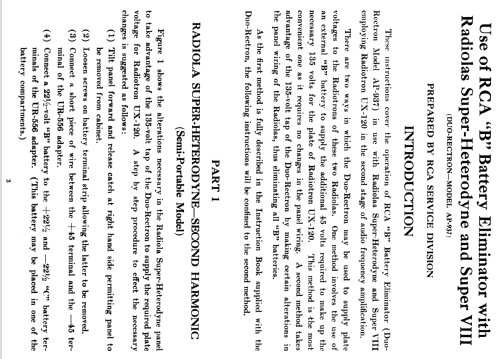

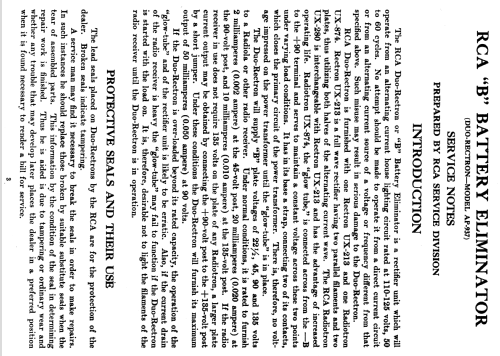

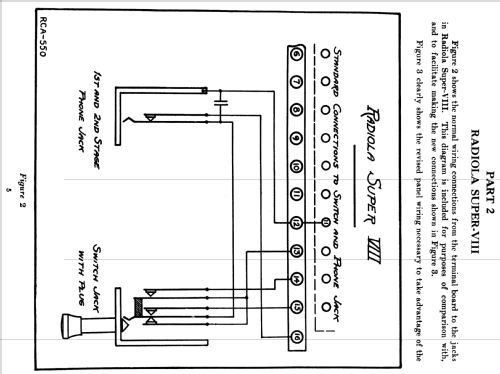

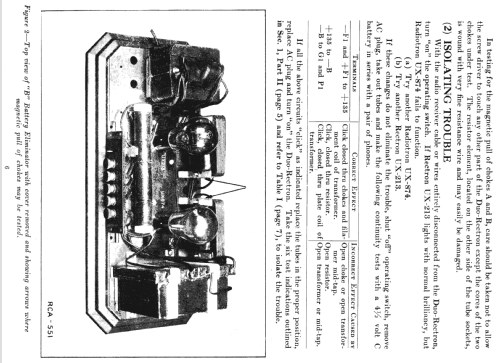

Literature/Schematics (1) - - Manufacturers Literature (Replacement Parts List, Aug. 20 1926, 2nd edition)
Literature/Schematics (2) -- Original prospect or advert (Popular Radio, Dec. 1925)
