AR-77E early

AR-77E ; RCA RCA Victor Co. (ID = 427981) Commercial Re

AR-77E ; RCA RCA Victor Co. (ID = 479254) Commercial Re

AR-77E ; RCA RCA Victor Co. (ID = 479255) Commercial Re

AR-77E ; RCA RCA Victor Co. (ID = 479256) Commercial Re

AR-77E ; RCA RCA Victor Co. (ID = 479257) Commercial Re

AR-77E ; RCA RCA Victor Co. (ID = 479258) Commercial Re

AR-77E ; RCA RCA Victor Co. (ID = 479259) Commercial Re

AR-77E ; RCA RCA Victor Co. (ID = 479260) Commercial Re

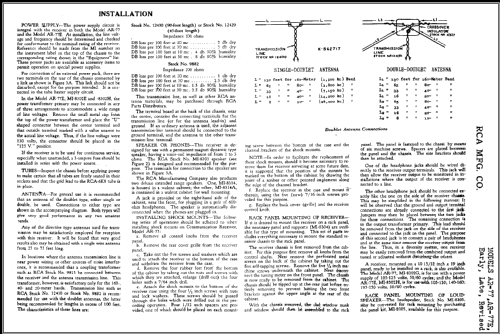

AR-77E ; RCA RCA Victor Co. (ID = 479261) Commercial Re

AR-77E ; RCA RCA Victor Co. (ID = 479262) Commercial Re
Use red slider bar for more.
AR-77E ; RCA RCA Victor Co. (ID = 427981) Commercial Re

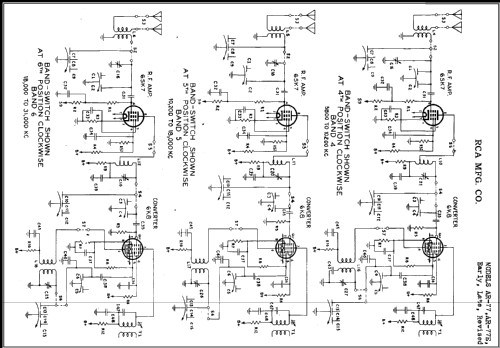

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1946 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 9: 6SK7 6K8 6SK7 6SK7 6H6 6SQ7 6F6 6SJ7 5Z4 VR150
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Other, details in remarks or not known.
Loudspeaker - For headphones or amp.
Power out 3 W (unknown quality)
from Radiomuseum.org Model: AR-77E [early] - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Chassis only or for «building in»
Notes Export model. Choice of AC and DC Power Packs.
Frequency coverage: 540 to 31,000 kc in 6 bands.
External source of data Ernst Erb

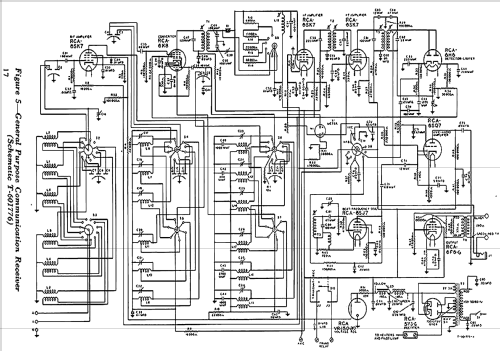

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
