• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1923

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 198300

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector; Reaction

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

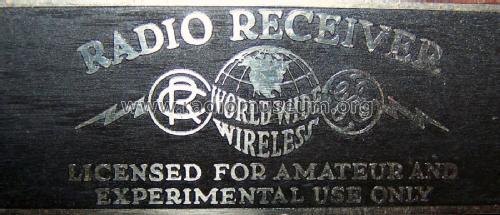

• Model: AR-1300 Radio Receiver [brown, dial knobs black] - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes
• Made for RCA by General Electric. Could be used as a Crystal receiver or as a regenerative tuner in conjunction with AA1400 Detector Amplifier.
  Painted faux mahogany, bakelite dials with black metal skirts.

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
