Radiola AC 2-Stage Audio Amplifier

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1923

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 54154

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• WD11 WD11

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Radiola AC 2-Stage Audio Amplifier - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 8.5 x 7 x 7.25 inch / 216 x 178 x 184 mm

• Notes

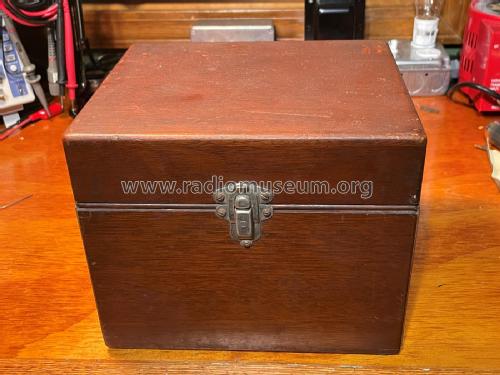

• Add on Audio Amp for Radiola Sr. Mahogany case. Nameplate in lid.

• External source of data
• Ernst Erb

• Source of data
• Radio Manufacturers of the 1920's, Vol. 3

• Other Models

• Here you find 5118 models, 3224 with images and 4148 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
