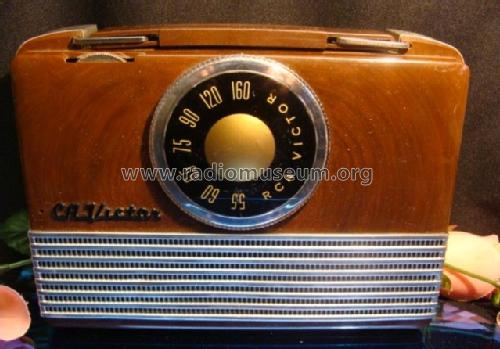

For model B-411 Ch= RC-1098 Early Production, RCA (RCA Victor Co. Inc.); New York (NY):
Eigenes Gerät und Photo . Zustand März 2018

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1950/1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.075 W (0.1 W max.)
from Radiomuseum.org Model: B-411 Ch= RC-1098 [Early Production] - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 7.625 x 5.5 x 2.125 inch / 194 x 140 x 54 mm
Notes

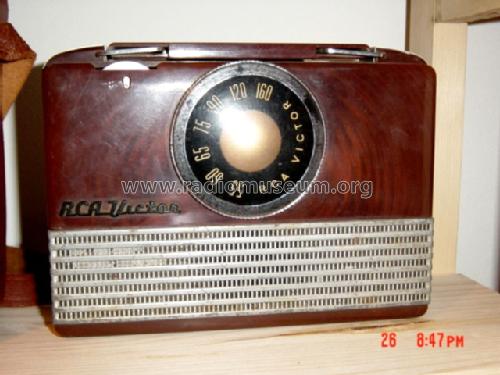

The RCA B-411 is a battery operated 4 tube BC band receiver.  Uses Qty(1) 2" x 3" PM speaker.

The BC band frequency range is 540 to 1600kHz.

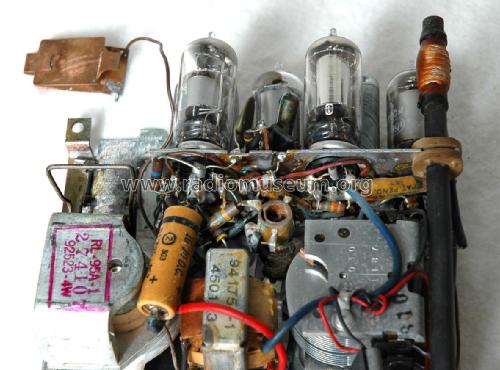

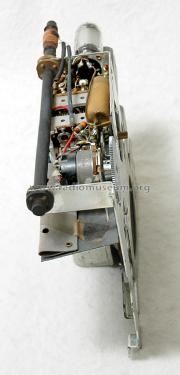

This early production version uses chassis RC-1098, which uses individual resistors and capacitors in the chassis.  The late production version uses chassis RC-1098A, which has Qty(2) printed circuit units that integrate Qty(10) individual resistors and capacitors.

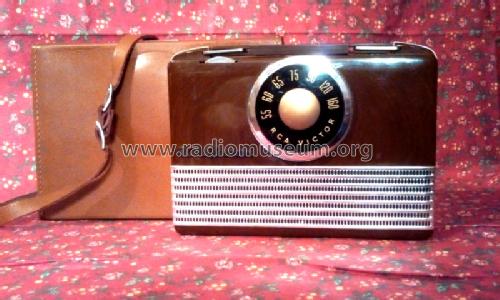

Qty(3) different types of cases were used during production on this model.

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Mentioned in Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 43-46)
