BK-41 Ch= RC-449

BK-41 Ch= RC-449; RCA RCA Victor Co. (ID = 984768) Radio

BK-41 Ch= RC-449; RCA RCA Victor Co. (ID = 984769) Radio

BK-41 Ch= RC-449; RCA RCA Victor Co. (ID = 984771) Radio

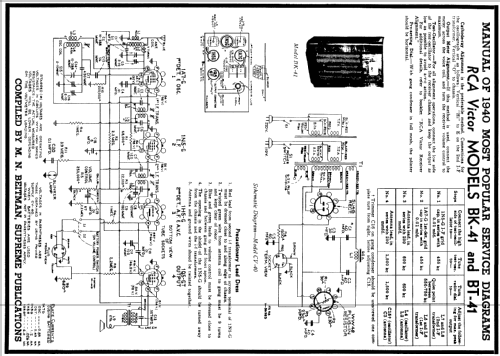

BK-41 Ch= RC-449; RCA RCA Victor Co. (ID = 60192) Radio

BK-41 Ch= RC-449; RCA RCA Victor Co. (ID = 174092) Radio
BK-41 Ch= RC-449; RCA RCA Victor Co. (ID = 174090) Radio
Use red slider bar for more.
BK-41 Ch= RC-449; RCA RCA Victor Co. (ID = 174090) Radio
RCA RCA Victor Co.: BK-41 Ch= RC-449 [Radio] ID = 174090 191x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model BK-41 Ch= RC-449, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7G 1N5G 1H5G 1Q5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / (1.5 ; 90) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: BK-41 Ch= RC-449 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 25.5 x 30 x 12.5 inch / 648 x 762 x 318 mm
Notes AC operation possible with Power Unit CV-40.
Net weight (2.2 lb = 1 kg) 21.7 kg / 47 lb 12.8 oz (47.797 lb)
Price in first year of sale 47.50 USD
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (1) RCA Victor Instruments Service Notes 1939
