BK-2 Ch= RC-1193A Ch= RS-177B

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 150304
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: BK-2 Ch= RC-1193A Ch= RS-177B - RCA RCA Victor Co. Inc.; New
  • Notes

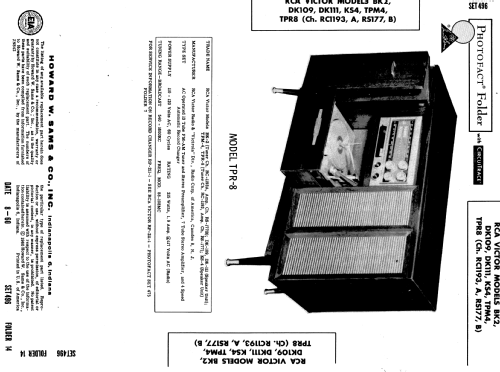

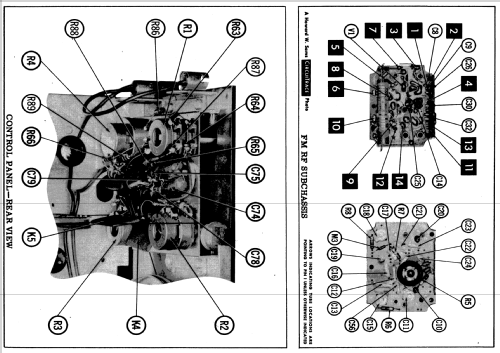

  • AC operated AM - FM tuner, stereo preamplifier, stereo amplifier and 4 speed automatic record changer. Sams photofact set 496 folder 14 date 8-60 features the RCA model BK-2 with tuner chassis RC-1193A and amp chassis RS-177B, the models TPM-4 and TPR-8 with tuner chassis RC-1193 and amp chassis RS-177 as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
