• Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 54186
    • alternative name: RCA Manufacturing || Victor Talking Machine

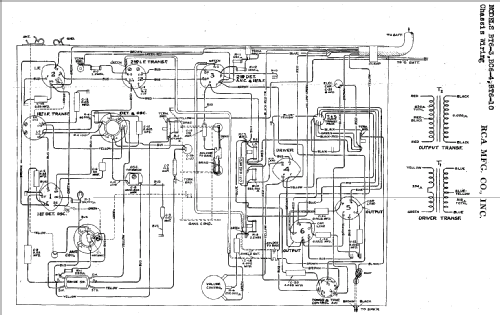

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage and/or dry batteries / 2 & 135 & 3 & 3 & 7.5 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8 inch = 20.3 cm
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: BT6-10 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 15.75 x 21.625 x 13.25 inch / 400 x 549 x 337 mm
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 6 = 1935 and before
