• Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 54189
    • alternative name: RCA Manufacturing || Victor Talking Machine

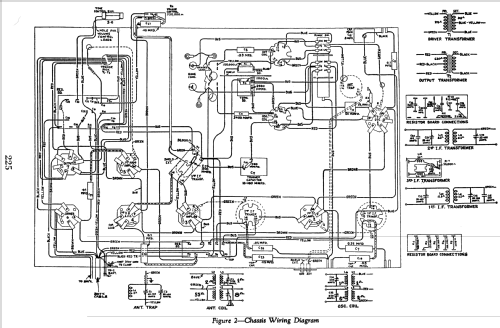

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: BT7-8 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 14.5 x 18.5 x 11 inch / 368 x 470 x 279 mm
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 6 = 1935 and before
