BX57 Ch= RC-1088C Late Production

BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 1375760) Radio

BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 1375761) Radio

BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 1375762) Radio

BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 1375763) Radio

BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 130179) Radio
BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 2315337) Radio BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 198320) Radio
BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 198321) Radio BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 198324) Radio
BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 198322) Radio BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 198325) Radio
BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 1189772) Radio BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 2550504) Radio
Use red slider bar for more.
BX57 Ch= RC-1088C; RCA RCA Victor Co. (ID = 2315337) Radio
RCA RCA Victor Co.: BX57 Ch= RC-1088C [Radio] ID = 2315337 1400x1057
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX57 Ch= RC-1088C Late Production, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1950/1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / Either AC 50 to 60 cycles, 115V or DC 115V or DC 7.5 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.17 W (0.35 W max.)
from Radiomuseum.org Model: BX57 Ch= RC-1088C [Late Production] - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.75 x 8.25 x 5 inch / 273 x 210 x 127 mm
Notes

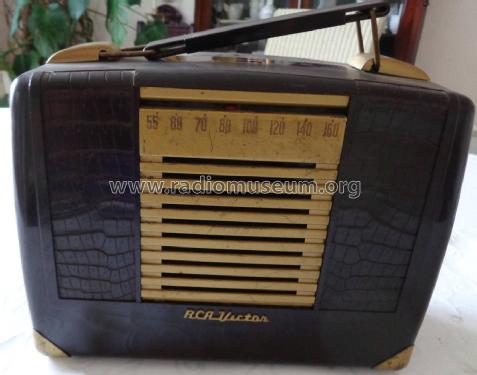

The RCA BX57 is a AC/DC/battery operated 4 tube BC band receiver.  Uses Selenium rectifier when powered from the 115V line. Cabinet color is Maroon.

The BC band frequency range is 540 to 1600kHz.

This early production version uses chassis RC-1088A, which uses a standard tension spring for the dial cord.  The late production version uses chassis RC-1088C, which uses a semicircular dial cord tension spring and slightly different speaker.

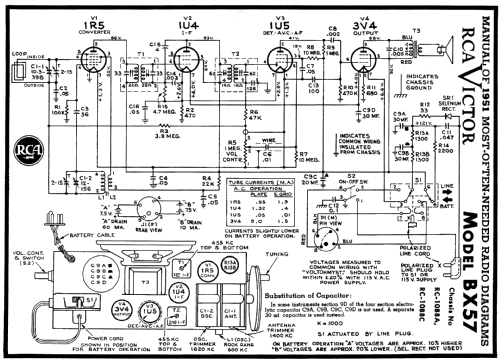

The Riders reference list only the early production RC-1088A chassis, but since the chassis differences are mechanical, the schematics and alignment procedure may be used for this late production model also.

Net weight (2.2 lb = 1 kg) 8 lb 2 oz (8.125 lb) / 3.689 kg
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 11, 1951 (Page 197)
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 55-58)
Literature/Schematics (3) Rider's Perpetual, Volume 21 = Copyright 1950 (Riders RCA 21-35 to 21-38)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
