For model C15-3, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 15: 6K7 6L7 6J7 6K7 6E5 6K7 6K7 6H6 6H6 6C5 6C5 6C5 6F6 6F6 5Z3
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 10 W (unknown quality)
from Radiomuseum.org Model: C15-3 - RCA RCA Victor Co. Inc.; New
Material Wooden case

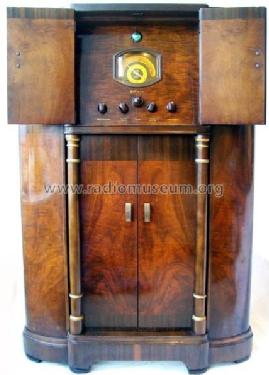

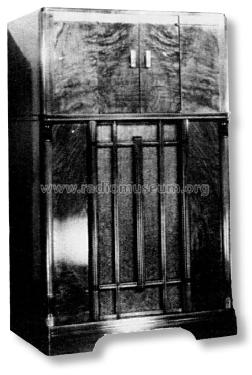

Shape Console with any shape - in general
Dimensions (WHD) 750 x 105 x 400 mm / 29.5 x 4.1 x 15.7 inch
Notes

Short Wave: 3 bands. Dial lamps: 4x 6,3V/0,3A This radio comes with 3 different voltage and frequency ratings: Rating A...105-125V, 50-60 cycles Rating B...105-125V, 25-60 cycles Rating C...100-130;140-160;195-250V 40-60 cycles

The RCA C15-3 (USA) & RCA C14-1 (Canada) appear to be very simular model. They both have the same number of tubes (15).

Net weight (2.2 lb = 1 kg) 51 kg / 112 lb 5.4 oz (112.335 lb)
Price in first year of sale 9'850.00 FFR
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

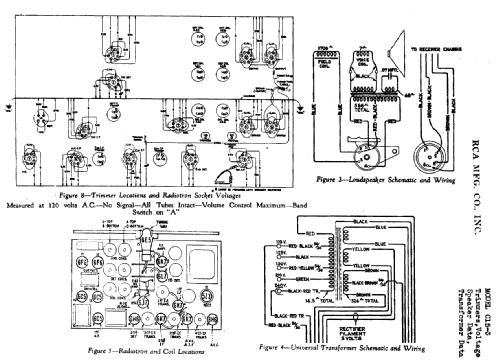

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Guide to Old Radios
Literature/Schematics (1) Pre-War Consoles
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series
