C9-4

C9-4 ; RCA RCA Victor Co. (ID = 915815) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915816) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915817) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915818) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915819) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915820) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915821) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915822) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915823) Radio

C9-4 ; RCA RCA Victor Co. (ID = 915824) Radio
C9-4 ; RCA RCA Victor Co. (ID = 272429) Radio C9-4 ; RCA RCA Victor Co. (ID = 272430) Radio
C9-4 ; RCA RCA Victor Co. (ID = 272431) Radio C9-4 ; RCA RCA Victor Co. (ID = 712612) Radio
Use red slider bar for more.
C9-4 ; RCA RCA Victor Co. (ID = 272429) Radio
RCA RCA Victor Co.: C9-4 [Radio] ID = 272429 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model C9-4, RCA (RCA Victor Co. Inc.); New York (NY):
Photograph from James Le Febvre

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7 6L7 6J7 6K7 6E5 6H6 6F5 6F6 5Z3
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: C9-4 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 26 x 40 x 12.5 inch / 660 x 1016 x 318 mm
Notes Model has 3 different mains voltage/frequency versions:
Rating A..105-125V, 50-60 cycles;
Rating B..105-125V, 25-60 cycles;
Rating C..100-130;140-160;195-250v, 40-60 cycles.
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

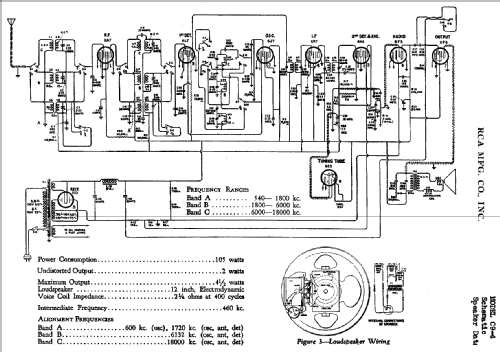

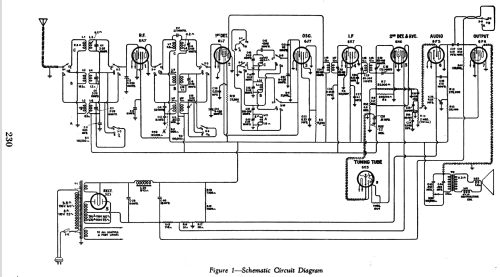

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
Literature/Schematics (2) Pre-War Consoles
