CR-91

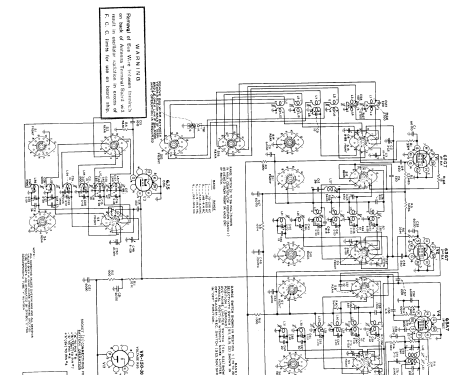

CR-91 ; RCA RCA Victor Co. (ID = 711025) Receiver-C

CR-91 ; RCA RCA Victor Co. (ID = 711026) Receiver-C

CR-91 ; RCA RCA Victor Co. (ID = 711027) Receiver-C

CR-91 ; RCA RCA Victor Co. (ID = 711018) Receiver-C

CR-91 ; RCA RCA Victor Co. (ID = 711020) Receiver-C

CR-91 ; RCA RCA Victor Co. (ID = 711021) Receiver-C

CR-91 ; RCA RCA Victor Co. (ID = 711022) Receiver-C

CR-91 ; RCA RCA Victor Co. (ID = 711023) Receiver-C
CR-91 ; RCA RCA Victor Co. (ID = 1760495) Receiver-C CR-91 ; RCA RCA Victor Co. (ID = 710639) Receiver-C
CR-91 ; RCA RCA Victor Co. (ID = 711031) Receiver-C CR-91 ; RCA RCA Victor Co. (ID = 711032) Receiver-C
CR-91 ; RCA RCA Victor Co. (ID = 711033) Receiver-C CR-91 ; RCA RCA Victor Co. (ID = 711034) Receiver-C
CR-91 ; RCA RCA Victor Co. (ID = 711035) Receiver-C CR-91 ; RCA RCA Victor Co. (ID = 711036) Receiver-C
Use red slider bar for more.
CR-91 ; RCA RCA Victor Co. (ID = 1760495) Receiver-C
RCA RCA Victor Co.: CR-91 [Receiver-C] ID = 1760495 1400x794
Select picture or schematic to display from thumbnails on the right and click for download.
For model CR-91, RCA (RCA Victor Co. Inc.); New York (NY):
Frontansicht

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1944–1953 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 13: 6SG7 6J5 6SA7 6H6 6SJ7 6K6GT VR150 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 735 kHz; 2 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 150; 210; 240 / 6 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: CR-91 - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 490 x 280 x 490 mm / 19.3 x 11 x 19.3 inch
Notes General purpose communications receiver with crystal filter, post-war development of low frequency model AR-88LF. Frequency coverage 73 kHz to 550 kHz (Bands 1 and 2) and 1,480 kHz to 30,500 kHz (Bands 3 to 6). Tube types above are listed only once. There was also CR-91A rack model manufactured.
Net weight (2.2 lb = 1 kg) 41 kg / 90 lb 4.9 oz (90.308 lb)
Literature/Schematics (1) General Purpose Communications Receiver, Model CR-91. Instructions. RCA Victor, Camden, NJ, USA

Model page created by Valery Gromov. See "Data change" for further contributors.
