CV-40 Ch= RS-98

CV-40 Ch= RS-98; RCA RCA Victor Co. (ID = 174107) Power-S
Use red slider bar for more.
CV-40 Ch= RS-98; RCA RCA Victor Co. (ID = 174107) Power-S

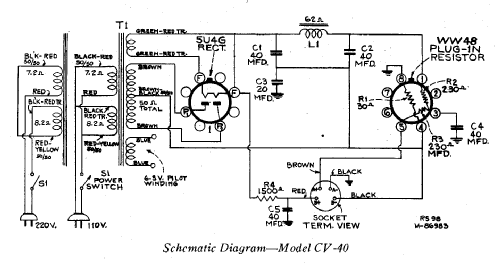

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Power supply/conditioner or battery or charger
Valves / Tubes 1: 5U4G
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CV-40 Ch= RS-98 - RCA RCA Victor Co. Inc.; New
Notes Power supply for portables.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (1) RCA Victor Instruments Service Notes 1939
