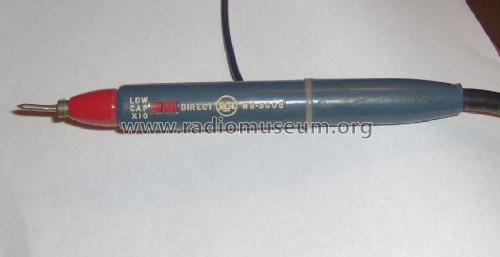

Direct/Low-Capacitance Probe WG-300B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1964
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 191031
-
- alternative name: RCA Manufacturing || Victor Talking Machine
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Direct/Low-Capacitance Probe WG-300B - RCA RCA Victor Co. Inc.; New
- Dimensions (WHD)
- 150 x 16 x 16 mm / 5.9 x 0.6 x 0.6 inch
- Notes
- Designed for use with RCA models WO-56A, WO-78A, WO-78B, WO-88A and WO-91A oscilloscopes; for use with RCA High Sensitivity AC VTVM WV-74A too; built-in 9 MegOhms resistor and 8.9 picoFarad parallel circuit on series at probe on "Low-Capacitance x 10" position switch.
- Net weight (2.2 lb = 1 kg)
- 0.1 kg / 0 lb 3.5 oz (0.22 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Emilio Focosi. See "Data change" for further contributors.
