IC Acoustic Reflex RZC 379W Walnut/Ebony (Japan 703)

IC Acoustic Reflex RZC 379W Walnut/Ebony ; RCA RCA Victor Co. (ID = 2623491) Radio IC Acoustic Reflex RZC 379W Walnut/Ebony ; RCA RCA Victor Co. (ID = 2623492) Radio

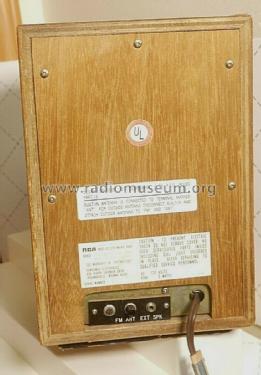

IC Acoustic Reflex RZC 379W Walnut/Ebony ; RCA RCA Victor Co. (ID = 2623493) Radio
Use red slider bar for more.
IC Acoustic Reflex RZC 379W Walnut/Ebony ; RCA RCA Victor Co. (ID = 2623491) Radio
RCA RCA Victor Co.: IC Acoustic Reflex RZC 379W Walnut/Ebony [Radio] ID = 2623491 864x1167
Select picture or schematic to display from thumbnails on the right and click for download.
For model IC Acoustic Reflex RZC 379W Walnut/Ebony (Japan 703), RCA (RCA Victor Co. Inc.); New York (NY):
eBay seller: orim46, item no. 313330272998

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1973 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: IC Acoustic Reflex RZC 379W Walnut/Ebony - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 6.5 x 10 x 8 inch / 165 x 254 x 203 mm
Notes

RCA AM-FM Table Top Receiver Model RZC 379W Walnut/Ebony
Tuning Range AM 540 - 1600 kHz, FM 88 - 108 MHz.
Power Consumption 5 Watts.
Acoustic Reflex Speaker.

Made in Japan 703


Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 1306, Folder 4, April 1973)

Model page created by Franz Scharner. See "Data change" for further contributors.
