- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1934 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 54323
-
- alternative name: RCA Manufacturing || Victor Talking Machine

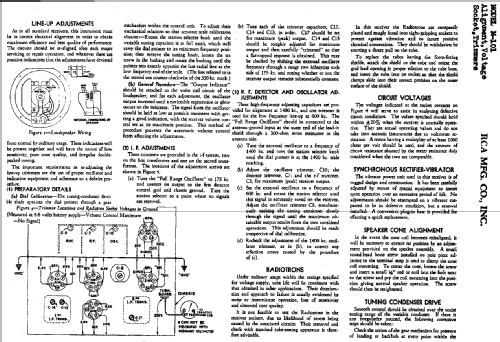

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 1.75 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: M101 - RCA RCA Victor Co. Inc.; New
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 9 x 9 x 6 inch / 229 x 229 x 152 mm
- Notes
- Synchr.vibrator for +B.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
