- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1934 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 54326
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 1.9 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: M107 - RCA RCA Victor Co. Inc.; New
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12 x 7.5 x 7 inch / 305 x 191 x 178 mm
- Notes
- Vibrator for +B.
- Price in first year of sale
- 52.50 USD
- External source of data
- Ernst Erb

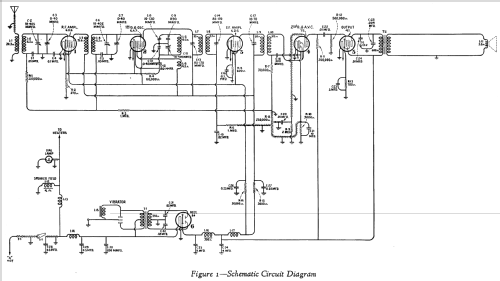

- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
