MI-12700 Console Recorder
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- alternative name: RCA Manufacturing || Victor Talking Machine

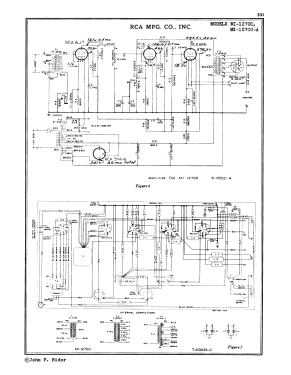

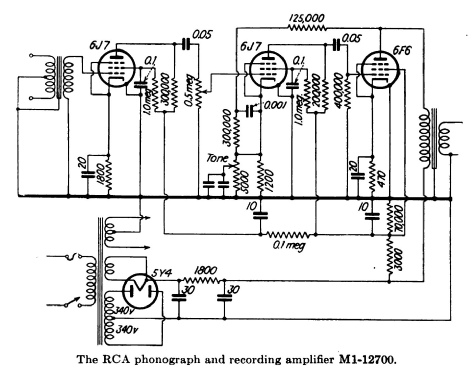

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Various materials
- from Radiomuseum.org
- Model: MI-12700 [Console Recorder] - RCA RCA Victor Co. Inc.; New
- Console with any shape - in general
This instrument records and reproduces records at a speed of 78 or 33 1/3 revolutions per minute using 10", 12" or 16" discs. Employs inside-out or outside-in recording methods. Visual indicator.
- Price in first year of sale
- 475.00 $
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (ad March 1939 page 35)
- Model page created by Ernst Erb. See "Data change" for further contributors.
