New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C

New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1996923) Radio New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1996924) Radio
New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1996925) Radio New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1996926) Radio
New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1996928) Radio New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1997177) Radio
New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1997178) Radio New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1997180) Radio
New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 2090542) Radio New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 2090543) Radio
Use red slider bar for more.
New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C; RCA RCA Victor Co. (ID = 1996923) Radio

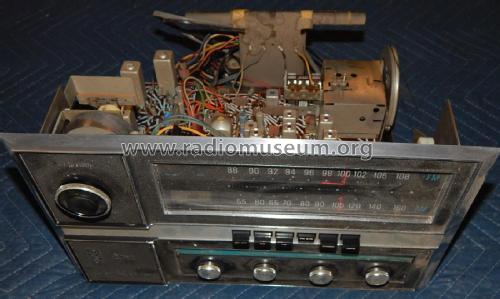

RCA RCA Victor Co.: New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C [Radio] ID = 1996923 1400x838
Select picture or schematic to display from thumbnails on the right and click for download.
For model New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C, RCA (RCA Victor Co. Inc.); New York (NY):
aus ebay, #262435813730, Verkäufer all4150nine

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1967 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200 watt, 60 cycles, 120 Volt

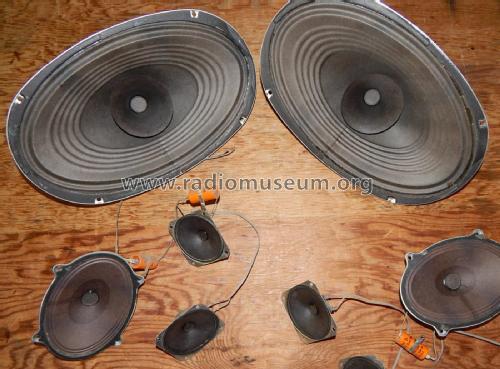

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: New Vista victrola solid state VHT15M Ch= RC-1218N and RS209C - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with any shape - in general
Notes

The content on this page is just a copy of New Vista victrola solid state VHT67F: According to Photofact Folder 901, volume 5, there are different VHT consoles with the same chassis - like:
VHT-10W, VHT15M, VHT15W, VHT18W, VHT21W, VHT25L, VHT27D, VHT29E, VHT30W, VHT31D, VHT32L with chassis RC-1227B and VHT33W, VHT34L, VHT35D, VHT36W, VHT37L, VHT39D, VHT80WK, VHT81WK, VHT82LK, VHT85WK, VHT86LK and VHT87SK with chassis RC-1227C (RC-1227B possible for 80, 81, 82), all from about 1966 and in SAMS 894-6. The Fotofact schematic 901-5 shows the same for VHT61W, VHT62H, VHT67L, VHT64F, VHT66S, VHT67F, VHT67Y, VHT98WK - and all share the chassis RC-1218N and RS-209C, but there are also listed VHT71F and VHT75W - with chassis RC-1218T and RS-211C. And VHT41W, VHT44S, VHT46L, VHT47S, VHT48E, VHT48S, VHT50W, VHT52W, VHT53W, VHT55L, VHT57D, VHT89WK, VHT90WK, VHT91HK, VHT91LK, VHT92FK, HHT93FK and VHT94SK share the chassis RC-1223C, RS-215J and RK-314D but VHT69W uses RK-314E instead of RK-314D, but all share SAMS 930-7 and are from about 1968. Together there are 52 VHT models listed in the 1970 Photofact annual index on page 62.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (set 901, volume 5)

Model page created by Ernst Erb. See "Data change" for further contributors.
