• Year
  • 1959 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 148965
    • alternative name: RCA Manufacturing || Victor Talking Machine

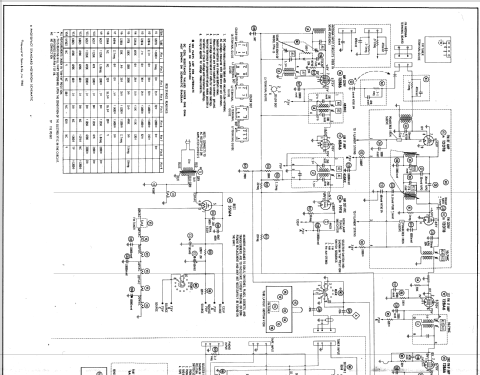

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: PM19 Ch= RS-171F - RCA RCA Victor Co. Inc.; New
  • Notes

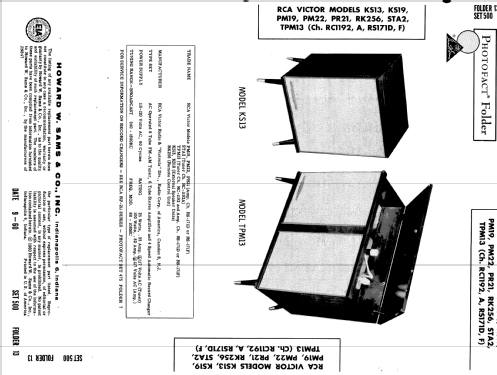

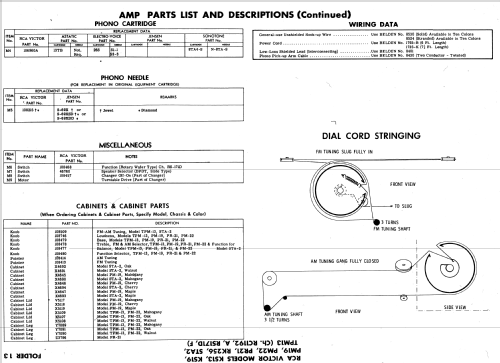

  • AC operated stereo amplifier with 4 speed automatic record changer. Sams photofact set 500 folder 13 date 9-60 features the RCA models PM19, PM22, PR21 with amp chassis RS-171D or RS-171F, the model STA2 with tuner chassis RC-1192A and amp chassis RS-171D or RS-171F, the model TPM13 with tuner chassis RC-1192 and amp chassis RS-171D or RS-171F as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
