• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1940 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 350918

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Portable Turntable and Recording Attachment MI-4822-B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 27.75 x 23 x 14 inch / 705 x 584 x 356 mm

• Notes

• The MI-4822-B has both recording and playback capability.

  It consists of:

  1 Portable Turntable in carrying case, MI-4814A (60 Hz, 105-125VAC).

  1 Recording Attachment, MI-4815 (outside-in).

  6 Steel Cutting Stylii.

  6 Chromium Reproducing Needles.

  4 Male Plugs.



• Net weight (2.2 lb = 1 kg)
• 82 lb (82 lb 0 oz) / 37.228 kg

• Mentioned in

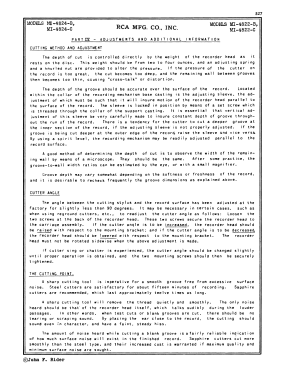

• Rider's Automatic Record Changers and Recorders (Pages 523-530.)

• Author
• Model page created by Ed Riley. See "Data change" for further contributors.
