• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54435

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

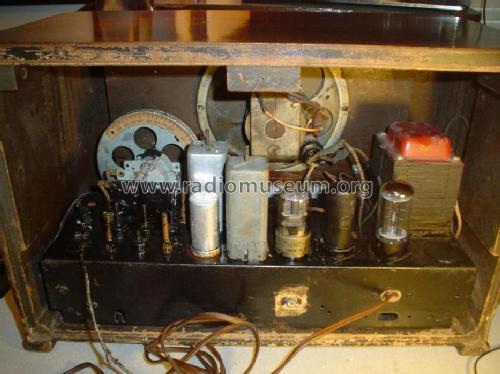

• Model: Q16E Ch= RC-561-C - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes
• Similar to Q16 but with Electrodynamic Speaker (therefore suffix E).

• Net weight (2.2 lb = 1 kg)
• 22 lb 0 oz (22 lb) / 9.988 kg

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Literature/Schematics (1)
• Rider's Perpetual, Volume 14 = covering up to late 1942 (C=1944) (see Q16)
