• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54445

• • alternative name: RCA Manufacturing || Victor Talking Machine

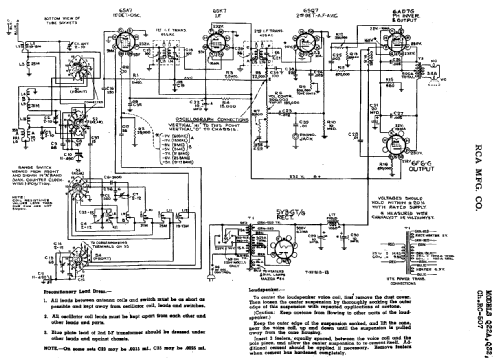

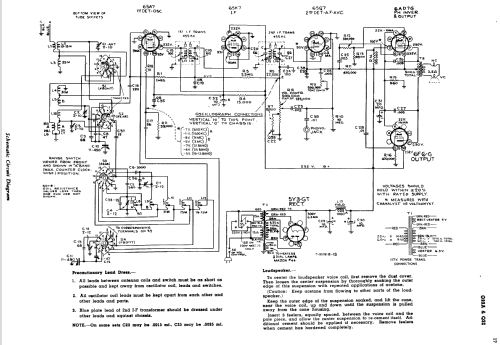

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6AD7G 6F6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125/210-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Q22A CH= RC-507 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15.875 x 10.625 x 7.625 inch / 403 x 270 x 194 mm

• Notes
• BC and 4xSW (3-22.5Mc)

• Net weight (2.2 lb = 1 kg)
• 21 lb (21 lb 0 oz) / 9.534 kg

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Literature/Schematics (1)
• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 15)

• Literature/Schematics (4)
• Riders 15-9,10,13,14,15
