Q34 Ch= RC-539E

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 1109031) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 1109032) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 1109033) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 1109034) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 19774) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 477944) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 477945) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 477946) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 477947) Radio

Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 477948) Radio
Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 110674) Radio Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 891356) Radio
Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 891357) Radio Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 891358) Radio
Use red slider bar for more.
Q34 Ch= RC-539E; RCA RCA Victor Co. (ID = 110674) Radio

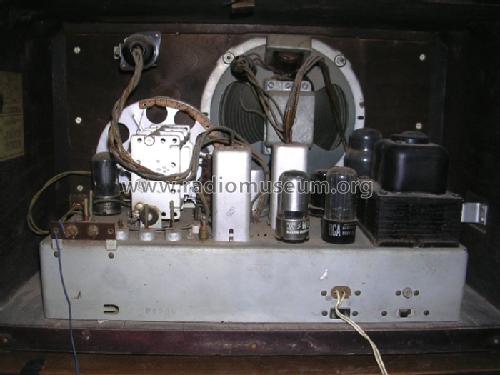

RCA RCA Victor Co.: Q34 Ch= RC-539E [Radio] ID = 110674 800x646

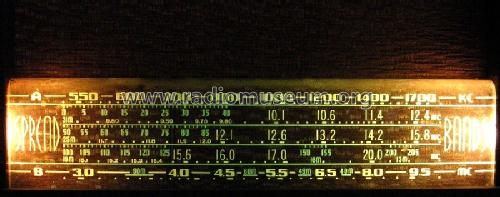

Select picture or schematic to display from thumbnails on the right and click for download.
For model Q34 Ch= RC-539E, RCA (RCA Victor Co. Inc.); New York (NY):
RCA Prospekt Schweiz 1948

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6SK7 6SA7 6SK7 6SQ7 6U5 6AD7G 6F6G 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 105-125/135-165/220-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3.25 W (4.5 W max.)
from Radiomuseum.org Model: Q34 Ch= RC-539E - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 345 x 265 mm / 21.7 x 13.6 x 10.4 inch
Notes

Wavebands: BC, 4xSW

7" x 9" elliptical speaker electrodynamic

Net weight (2.2 lb = 1 kg) 34 lb (34 lb 0 oz) / 15.436 kg
Price in first year of sale 765.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 19)
