• Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 54501
    • alternative name: RCA Manufacturing || Victor Talking Machine

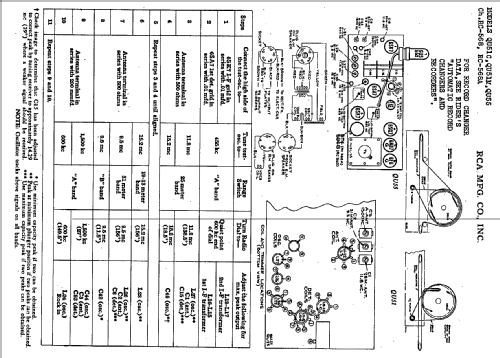

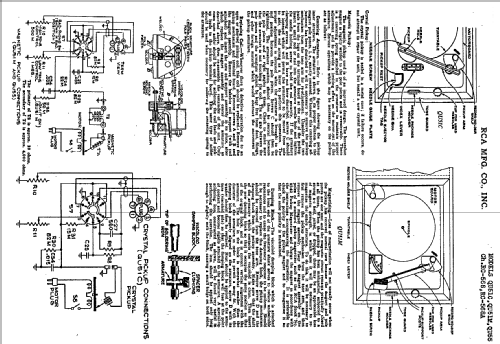

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-250 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 12 inch = 30.5 cm
  • Power out
  • 11 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: QU51M Ch= RC-568 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 34.5 x 35 x 17 inch / 876 x 889 x 432 mm
  • Notes
  • Five-Band. 2 Loudspeakers: 1 PM and 1 EM. Magnetic Pickup.
  • Net weight (2.2 lb = 1 kg)
  • 48.5 kg / 106 lb 13.3 oz (106.828 lb)
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 14 = 1944 = before 1943
  • Literature/Schematics (1)
  • RCA Victor Instruments Service Notes 1941-1942
  • Literature/Schematics (4)
  • Riders 13-10 ;14-37 to 40 ; 17-6
