For model R7LW, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1931 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 35 35 24 27 27 45 45 80
Main principle Superhet with RF-stage; ZF/IF 110 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details

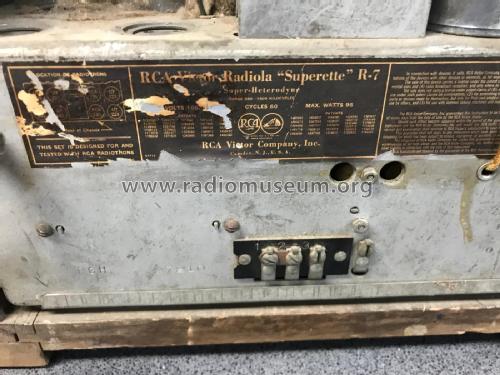

Power type and voltage Alternating Current supply (AC) / 100-115; 116-130; 131-155; 200-230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: R7LW - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 350 x 480 x 250 mm / 13.8 x 18.9 x 9.8 inch
Notes Export model . Dial lamp: 2,5V/0,3A
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before

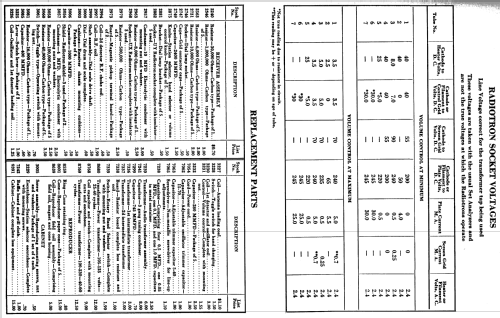

Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
