• Year
  • 1932 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 264772
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / 2.5 & 22.5 & 157.5 & -22.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

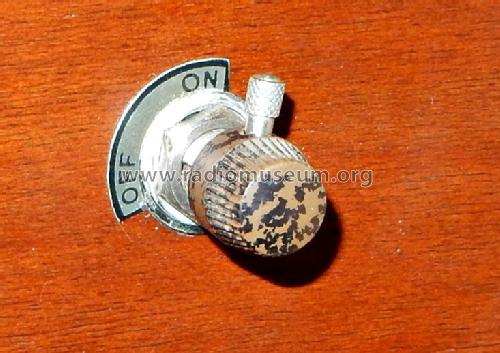

  • Model: R-24-B - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 18 x 10 x 14 inch / 457 x 254 x 356 mm
  • Notes
  • A cover sheet on the Service Notes states " The RCA R-24-B is a combination of both the R-71-B and SW-3 Shortwave Converter."

    This file contains the original factory service publication for the R-71-B and SW-3 Shortwave Converter."  Within the Service notes it states "The RCA Victor Short Wave Converter SW-3 is a two-tube Super-Heterodyne Converter that may be used with standard broadcast band receivers. By means of the Converter, short wave broad-casting stations may be received merely by tuning with the broadcast receiver. A selector switch allows choice of the short wave band that it is desired to receive...A three-section, five-position switch, located on the side or front of the cabinet, provides for readily changing the detector fixed tuning inductance and the oscillator fixed tuning capacitance (both in the short wave converter) for operation in any desired short wave broadcasting band..

  • Net weight (2.2 lb = 1 kg)
  • 34 lb 0 oz (34 lb) / 15.436 kg
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Warren Wright. See "Data change" for further contributors.
