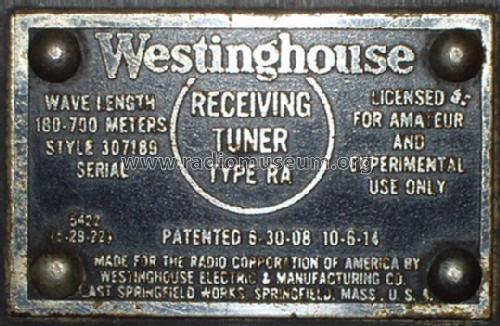

Westinghouse RA
Use red slider bar for more.
RCA RCA Victor Co.: Westinghouse RA [mod-pre26] ID = 607827 521x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
RCA Manufacturing || Victor Talking Machine | ||||
|---|---|---|---|---|---|
| Year: 1921 | Category: Radio module pre 1926 (not a part, not a key) |
| Main principle | Tuner pre 1926 (not a wave trap) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Westinghouse RA - RCA RCA Victor Co. Inc.; New |
| Material | Wooden case |
| Shape | Tablemodel, Box - most often with Lid (NOT slant panel). |
| Dimensions (WHD) | 6.5 x 9.5 x 8.5 inch / 165 x 241 x 216 mm |
| Notes | Tuner used with detector (either crystal, e.g. DB, or with tubes, e.g. DA). |
| Price in first year of sale | 68.00 $ |
| External source of data | Ernst Erb |
| Source of data | Radio Collector`s Guide 1921-1932 |
| Mentioned in | Guide to Old Radios |
| Literature/Schematics (1) | Radio Manufacturers of the 1920's, Vol. 3 (and RCA catalog 1922) |
| Literature/Schematics (3) | Radiola, the golden Age of RCA (Page 80-90) |
