• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1930 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198584

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 24 27 24 24 24 27 45 45 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola 86 [With Remote Control] - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 18 x 48 x 27 inch / 457 x 1219 x 686 mm

• Notes
• There is a separate model without the remote control. There were two versions available, one operating from 50-60 Cycle AC and the other operating from 25-30 Cycle AC.

• Net weight (2.2 lb = 1 kg)
• 150 lb (150 lb 0 oz) / 68.1 kg

• Mentioned in
• Pre-War Consoles

• Literature/Schematics (1)

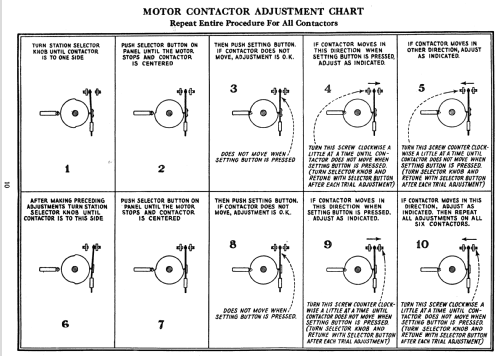

• RCA Victor Service Notes "Red Book" Series

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
