For model Radiola IX, RCA (RCA Victor Co. Inc.); New York (NY):

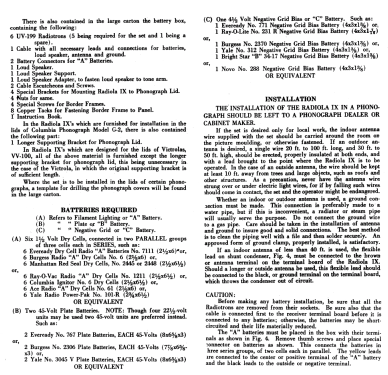

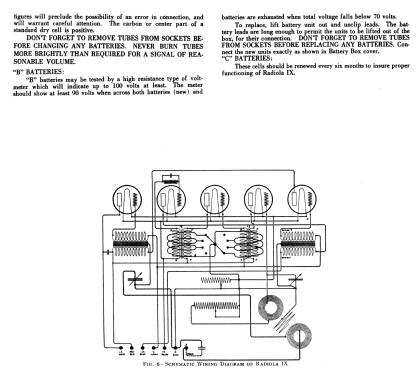

From the original RCA description - as a sample how to use the Radiola IX.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UV199 UV199 UV199 UV199 UV199
Main principle TRF with regeneration
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Radiola IX - RCA RCA Victor Co. Inc.; New
Material Various materials
Shape Chassis only or for «building in»
Notes Panel version of Radiola VII. The panel was cut to fit several makes of phonographs.
Price in first year of sale 215.00 $
External source of data Ernst Erb
Source of data Radio Manufacturers of the 1920's, Vol. 3
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
