For model Radiola Special metal case, 4 teminals, RCA (RCA Victor Co. Inc.); New York (NY):
Ebay Nr. 160076601522 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: UV199
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4.5 & 45 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Radiola Special [metal case, 4 teminals] - RCA RCA Victor Co. Inc.; New

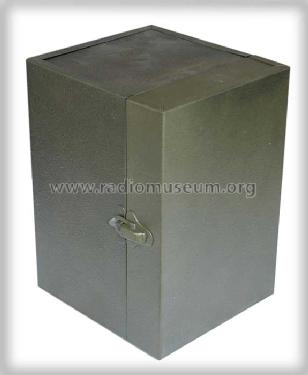

Material Metal case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes May 1923. Price complete with tube and Brandes headphones. Manufactured by Wireless Specialty, it was converted from unsold AR1375's (June 1922). A new panel is mounted on top of the "old" one, with shows a different dial and inscription. There is also a wooden case model using the modified "old" 1375 panel. See there.
Price in first year of sale 63.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Radio Manufacturers of the 1920's, Vol. 3 (p.26)
Literature/Schematics (1) Radio Enters the Home, RCA Catalog 1922,
