Radiola Super-Heterodyne AR-813

Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508988) Radio Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508989) Radio
Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508990) Radio Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508991) Radio
Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508993) Radio Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508995) Radio
Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508996) Radio Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508997) Radio
Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508998) Radio Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508999) Radio
Use red slider bar for more.
Radiola Super-Heterodyne AR-813; RCA RCA Victor Co. (ID = 1508988) Radio
RCA RCA Victor Co.: Radiola Super-Heterodyne AR-813 [Radio] ID = 1508988 933x1317
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Super-Heterodyne AR-813, RCA (RCA Victor Co. Inc.); New York (NY):
Ebay Item Number: 181201119094

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UV199 UV199 UV199 UV199 UV199 UV199
Main principle Superheterodyne (common); ZF/IF 40 kHz; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Radiola Super-Heterodyne AR-813 - RCA RCA Victor Co. Inc.; New
Material Wooden case

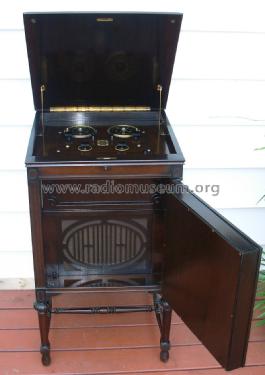

Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 21.5 x 36 x 21.5 inch / 546 x 914 x 546 mm
Notes

In 1924 RCA sold a version of the Radiola Super-Heterodyne AR-812 to Brunswick in a square panel with model number AR-813 for use in the phonograph/radio combinations Brunswick built. In 1924 RCA also produced a radio only console model AR-813 sold with no reference to Brunswick.

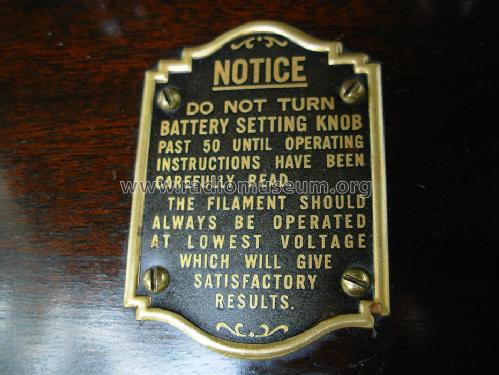

The Radiola Super-Heterodyne AR-813 incorporated a loop antenna in the thick front door. The AR-813 panel used in the Radiola Super-Heterodyne was virtually identical to the panel used in the Brunswick AR-813 except for the Brunswick tag on the front panel was replaced with a tag warning about the rheostat setting. Serial numbers for the Brunswick AR-813 are typically in the 300,000-325,000 range while the RCA AR-813 are higher than 325,000. Speculation exists that these sets were a RCA overun of Brunswick models packaged as console radios to use up existing inventory.

Mentioned in Radiola, the golden Age of RCA (Page 214-217)

Model page created by Alan Larsen. See "Data change" for further contributors.
