Radiola 61-1 Ch= RC-1011

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53597
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radiola 61-1 Ch= RC-1011 - RCA RCA Victor Co. Inc.; New
  • Shape

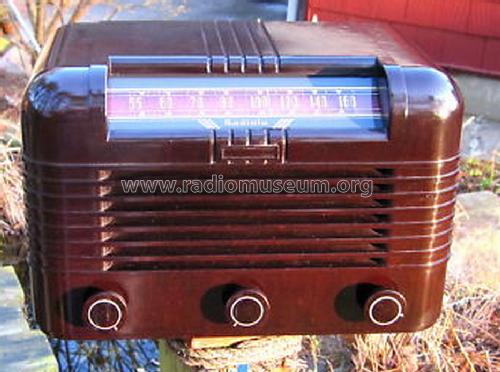

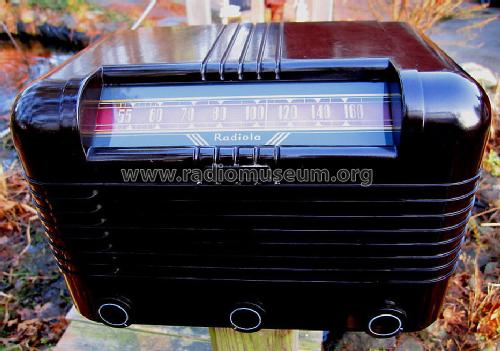

  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 12.25 x 8 x 7.5 inch / 311 x 203 x 191 mm
  • Notes
  • Similar to model 56X. The Radiola model 61-1 is an AC-DC Operated Superheterodyne Receiver with Self Contained Loop Antenna.
  • External source of data
  • Ernst Erb

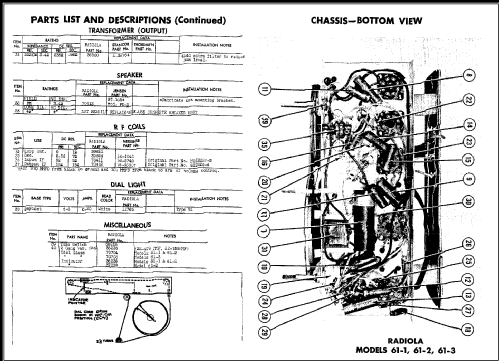

  • Circuit diagram reference
  • Rider's Perpetual, Volume 15 = 1947 and before
