Radiola 61-3 Ch= RC-1011
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53609
-
- alternative name: RCA Manufacturing || Victor Talking Machine

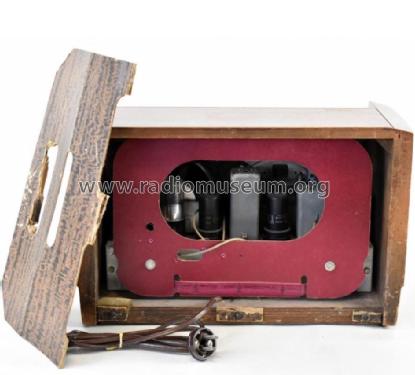

Picture Courtesy Of EBAY User: hoao600
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola 61-3 Ch= RC-1011 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 14 x 8 x 7.8 inch / 356 x 203 x 198 mm
- Notes
- Similar to model 56X3. The Radiola model 61-1 is an AC-DC Operated Superheterodyne Receiver with Self Contained Loop Antenna.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition (Beitman Radio Diagrams 1946)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Dat 2-47, set 14, folder 474-25)
