For model 56X5 Ch= RC-1023 wood, RCA (RCA Victor Co. Inc.); New York (NY):
Front-top view. The radio is turned on and tuned to a local station. You can see the dial is illuminated. The dial illumination fades in when the radio is first turned on.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SG7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 56X5 Ch= RC-1023 [wood] - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 14.75 x 8.5 x 7.125 inch / 375 x 216 x 181 mm
Notes Also with Edyn speaker. From 8900 to 12,000 kc.
Net weight (2.2 lb = 1 kg) 10 lb 11 oz (10.688 lb) / 4.852 kg
Price in first year of sale 34.95 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

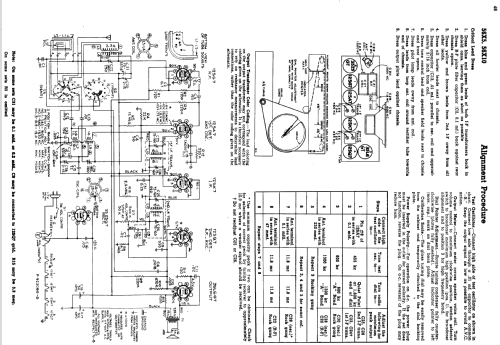

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (October 1945 page 77.)
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 47)
