66X11 Ch= RC-1046C 2nd Production

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 1106641) Radio

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 1106642) Radio

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 1106643) Radio

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 176287) Radio

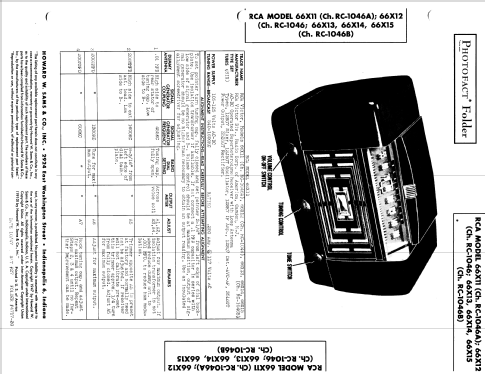

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795332) Radio

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795333) Radio

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795334) Radio

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795335) Radio

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795439) Radio

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795440) Radio
66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795322) Radio 66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795327) Radio
66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795331) Radio 66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795324) Radio
66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 176286) Radio 66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795323) Radio
66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795325) Radio 66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795326) Radio

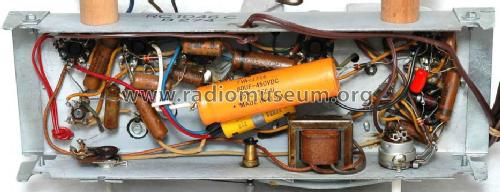

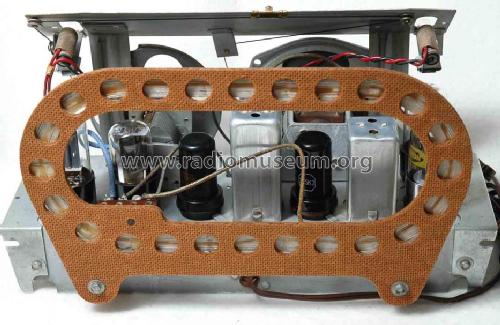

66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795329) Radio 66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795330) Radio
Use red slider bar for more.
66X11 Ch= RC-1046C; RCA RCA Victor Co. (ID = 795322) Radio

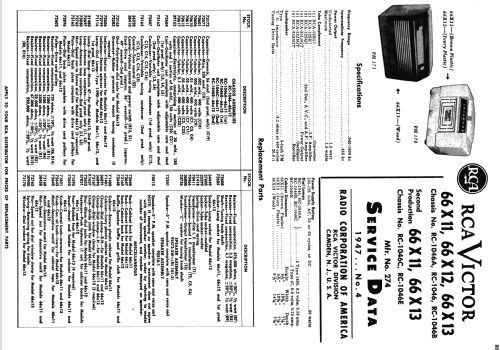

RCA RCA Victor Co.: 66X11 Ch= RC-1046C [Radio] ID = 795322 933x627
Select picture or schematic to display from thumbnails on the right and click for download.
For model 66X11 Ch= RC-1046C 2nd Production, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

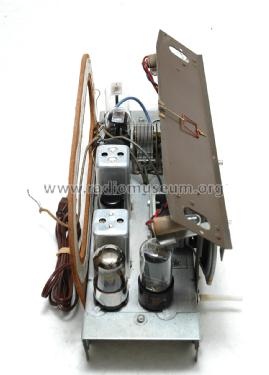

Valves / Tubes 6: 12SG7 12J5GT 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)

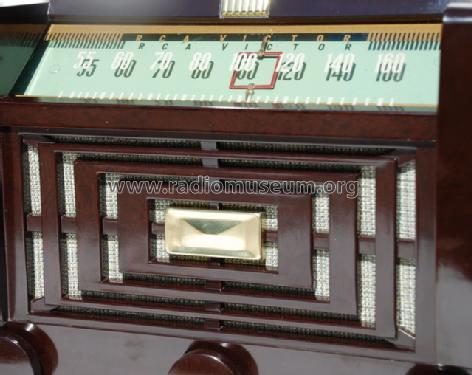

Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 66X11 Ch= RC-1046C [2nd Production] - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 345 x 215 x 185 mm / 13.6 x 8.5 x 7.3 inch
Notes Dial lamps: 2 type1490, 3.2V, 0.16 amp.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
External source of data Ernst Erb
Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957
Mentioned in Rider's Perpetual, Volume 18 = covering late 1947 to early 1948 (RCA Victor Service Data No. 4 (1947); RCA Victor Supplementary Information No 12 (1947))
Literature/Schematics (1) Rider's Perpetual, Volume 19 = covering late 1948 to early 1949 (Copyright 1949) (RCA Victor Instruments Service Notes 1947)


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
