For model 2B401 Ch= RC-1114, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1952 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 1.5 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.075 W (0.1 W max.)
from Radiomuseum.org Model: 2B401 Ch= RC-1114 - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.9 x 5.9 x 2.7 inch / 226 x 150 x 69 mm
Notes

The RCA 2B401 is a portable, battery operated 4 tube AM receiver. The BC band tuning range is 540 to 1600kHz. Cabinet color is Black. Uses Qty(1) Elliptical PM 2" x 3" speaker. Has battery "Life Saver" switch. Also has built-in ferrite rod antenna. Uses Qty(2) 1.5V batteries (In parallel) and Qty(1) 67.5V battery.

The following models use the same schematic and cabinet but have different cabinet colors:

Model Number Cabinet Color
2B400 Gray
2B401 Black
2B402 Ivory
2B403 Green
2B404 Tan
2B405 Red



Net weight (2.2 lb = 1 kg) 3.75 lb (3 lb 12 oz) / 1.703 kg
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

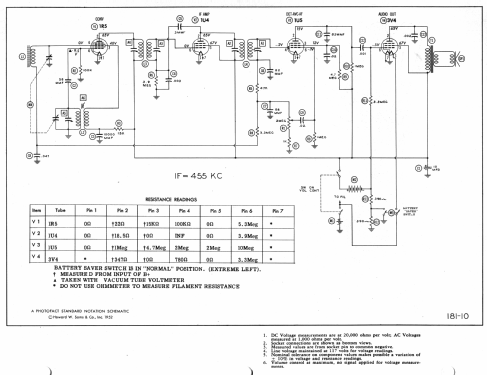

Circuit diagram reference Beitman Radio Diagrams Vol. 12, 1952
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954 (Riders (RCA) 23-23 to 23-26)
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 1)
Literature/Schematics (3) Beitman Radio Diagrams, Vol. 12, 1952 (Page 113)
