• Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53351
    • alternative name: RCA Manufacturing || Victor Talking Machine

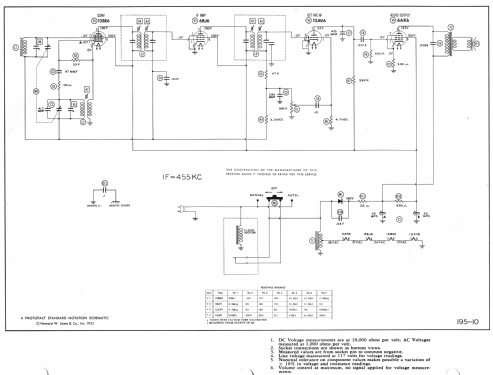

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Power out
  • 0.19 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

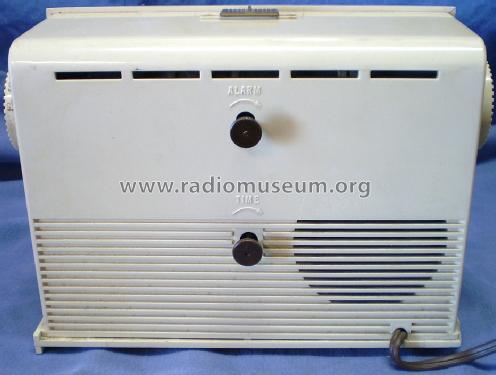

  • Model: 2C512 Ch= RC-1118 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 8.5 x 6 x 4.5 inch / 216 x 152 x 114 mm
  • Notes
  • The RCA 2C512 is an AC operated 4 tube AM clock radio receiver. AM Band Tuning Range: 540 - 1600kHz. Cabinet color is Ivory. Uses Qty(1) PM 3" speaker. Has built-in ferrite rod antenna. Uses Selenium Rectifier.
  • Net weight (2.2 lb = 1 kg)
  • 2.1 kg / 4 lb 10 oz (4.626 lb)
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 23 (last), covering up to 1954
