2-XF-931 "The Townley" Ch= RC-1121A

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 164848) Radio

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 164849) Radio

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 1233875) Radio

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 1233876) Radio

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 1233877) Radio

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 1233878) Radio

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 1233879) Radio

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 1233881) Radio
2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 764100) Radio 2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 764101) Radio

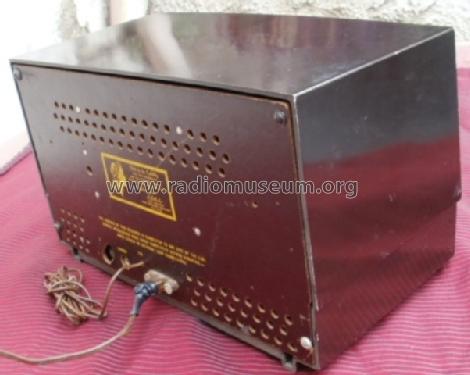

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 764102) Radio 2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 764103) Radio

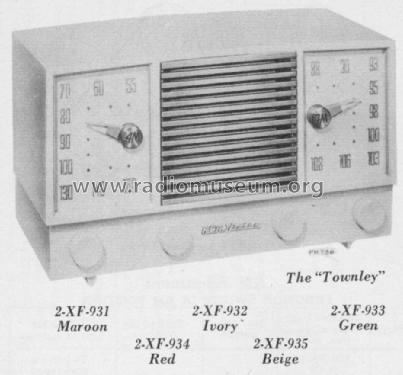

2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 1233874) Radio 2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 1557934) Radio
Use red slider bar for more.
2-XF-931 'The Townley' Ch= RC-1121A; RCA RCA Victor Co. (ID = 764100) Radio
RCA RCA Victor Co.: 2-XF-931 "The Townley" Ch= RC-1121A [Radio] ID = 764100 640x407
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2-XF-931 "The Townley" Ch= RC-1121A, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BJ6 19X8 12BA6 12AU6 12AU6 12AL5 12AV6 35C5
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 2-XF-931 "The Townley" Ch= RC-1121A - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13.6 x 8.5 x 7.8 inch / 345 x 216 x 198 mm
Notes The RCA 2-XF-931 is an AC operated 8 tube AM/FM receiver. AM Band Tuning Range: 540 - 1600kHz. FM Band Tuning Range: 88 - 108MHz. Cabinet color is Maroon. Uses Qty(1) PM 5.25" speaker. Has Selenium Rectifier. Has built-in loop antenna for AM and uses line cord for FM antenna with provisions for connecting an external antenna. Has external Phonograph input. Uses Qty(2) #47 dial lamps
Net weight (2.2 lb = 1 kg) 8 lb (8 lb 0 oz) / 3.632 kg
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

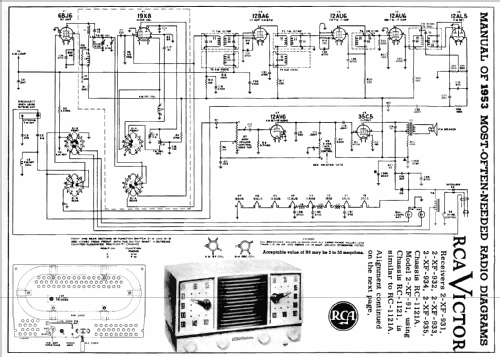

Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 53)
