8Q4 Ch= RC-337A

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 975453) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 975454) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 975455) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 975456) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 975457) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 975458) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 255697) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 965401) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 965402) Radio

8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 965403) Radio
8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 1354124) Radio 8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 387180) Radio
8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 387182) Radio 8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 387183) Radio
8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 255695) Radio 8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 387184) Radio
8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 387181) Radio 8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 387185) Radio
8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 446812) Radio 8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 446813) Radio
Use red slider bar for more.
8Q4 Ch= RC-337A; RCA RCA Victor Co. (ID = 1354124) Radio

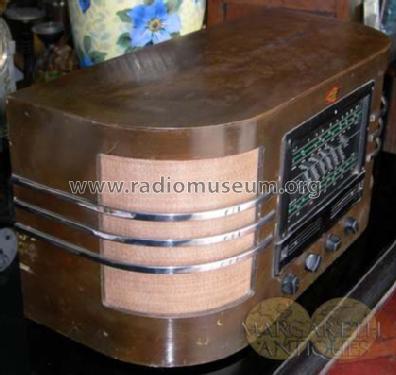

RCA RCA Victor Co.: 8Q4 Ch= RC-337A [Radio] ID = 1354124 933x700

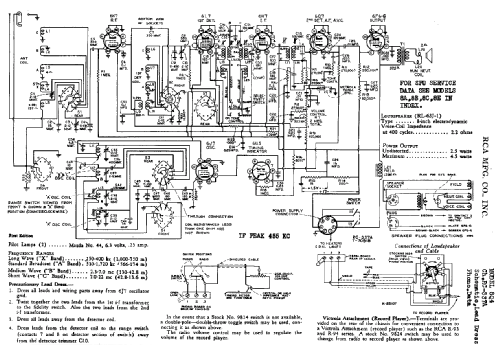

Select picture or schematic to display from thumbnails on the right and click for download.
For model 8Q4 Ch= RC-337A, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7 6L7 6J7 6K7 6U5 6Q7 6F6G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Line (AC, UC or DC not known) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 8Q4 Ch= RC-337A - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 24.5 x 12.7 x 10.7 inch / 622 x 323 x 272 mm
Notes Choice of 4 power supplies for AC and DC: PSU 8A, PSU 8B, PSU 8C (AC 105-160 volts) and PSU 8E (DC 105-250 volts).
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Guide to Old Radios
Literature/Schematics (1) Machine Age to Jet Age III (RCA Victor Service Notes for 1938)
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 132.)


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
