U123 Ch= RC-421 2 Bands

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 983166) Radio

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 983167) Radio

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 983168) Radio

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 983169) Radio

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 983170) Radio

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 983171) Radio

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 983172) Radio

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 942590) Radio

U123 Ch= RC-421; RCA RCA Victor Co. (ID = 942591) Radio
Use red slider bar for more.
U123 Ch= RC-421; RCA RCA Victor Co. (ID = 983166) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8G 6K7 6H6 6F5 6K6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: U123 Ch= RC-421 [2 Bands] - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 30.375 x 34 x 17 inch / 772 x 864 x 432 mm
Notes This model has 5 power supply ratings:
Rating A6...105-125V, 60 Cycles
Rating A5...105-125V, 50 Cycles
Rating B2...105-125V, 25 Cycles
Rating C6...105-125;210-250V, 60 Cycles
Rating C5...105-125;210-250V, 50 Cycles
Net weight (2.2 lb = 1 kg) 74 lb (74 lb 0 oz) / 33.596 kg
Price in first year of sale 130.00 $
External source of data Ernst Erb

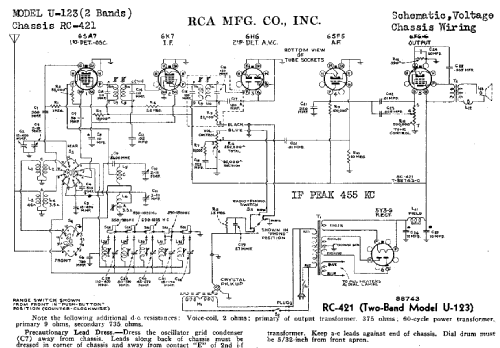

Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
