• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53342

• • alternative name: RCA Manufacturing || Victor Talking Machine

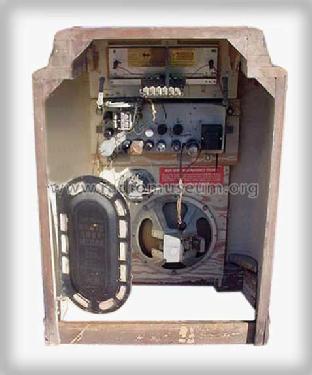

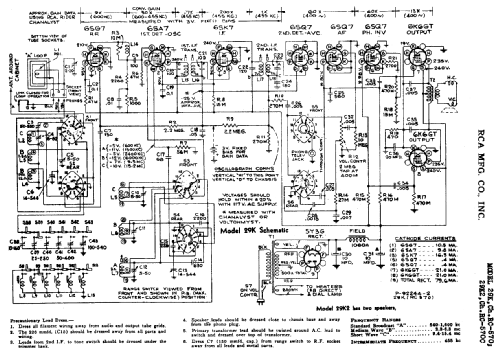

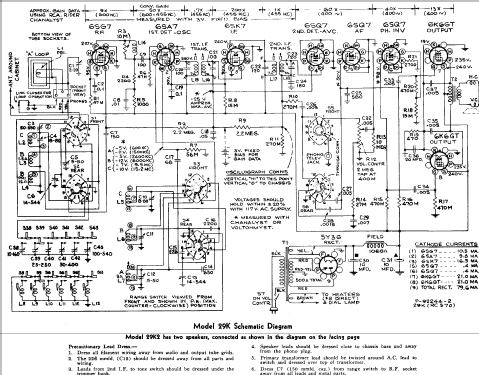

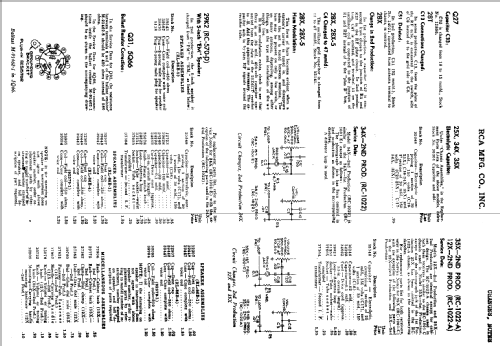

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6SG7 6SA7 6SK7 6SQ7 6SQ7 6SQ7 6K6GT 6K6GT 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 29K2 Ch= RC-570C - RCA RCA Victor Co. Inc.; New

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 29 x 39.2 x 19 inch / 737 x 996 x 483 mm

• Notes
• Dial lamps: 2 Mazda Nº44, 6,8V, 0.25A.

• Net weight (2.2 lb = 1 kg)
• 25.9 kg / 57 lb 0.8 oz (57.048 lb)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• RCA Victor Instruments, Service Notes, 1941-1942

• Literature/Schematics (1)
• Pre-War Consoles ( )

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (July 1941.)

• Other Models

• Here you find 5118 models, 3224 with images and 4148 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
