For model 54B2 Ch= RC-589, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.12 W (unknown quality)
from Radiomuseum.org Model: 54B2 Ch= RC-589 - RCA RCA Victor Co. Inc.; New
Material Bakelite or Plastics (type unknown)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.5 x 3.2 x 4.2 inch / 165 x 81 x 107 mm
Notes Brown
2" x 3" PM elliptical speaker.
Net weight (2.2 lb = 1 kg) 3.25 lb (3 lb 4 oz) / 1.476 kg
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition (Beitman Radio Diagrams 1946)

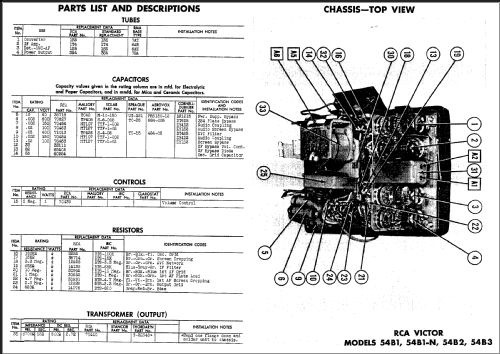

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 7, Folder 467-22)
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 29)


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
