• Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53349
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 117 AC/DC; (90; 9) Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.17 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 2BX63 Ch= RC-1115 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 12.5 x 8 x 5.6 inch / 318 x 203 x 142 mm
  • Notes

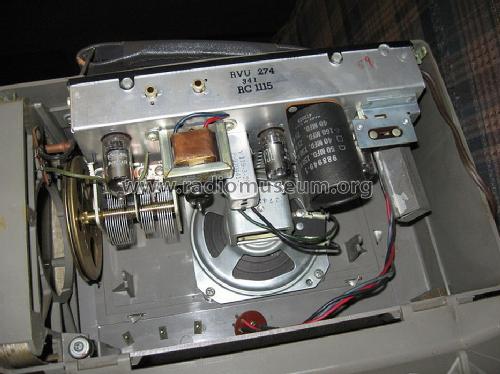

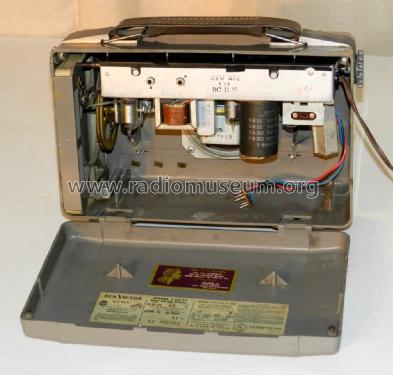

  • The RCA 2BX63 is a portable, AC/DC/battery operated 5 tube AM receiver. AM Band Tuning Range: 540 - 1600kHz. Cabinet color is Gray. Uses Qty(1) PM 4" speaker. Has built-in loop antenna. Uses Selenium Rectifier when operated from line power.
  • Net weight (2.2 lb = 1 kg)
  • 2.1 kg / 4 lb 10 oz (4.626 lb)
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 13, 1953
