• Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53276
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 5 inch = 12.7 cm
  • Power out
  • 12 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

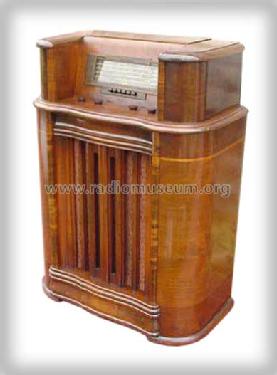

  • Model: 211K Ch= RC-571 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 28 x 40 x 15 inch / 711 x 1016 x 381 mm
  • Notes

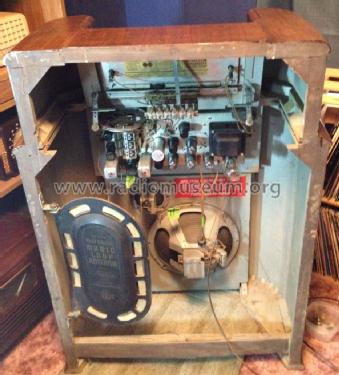

  • 2 loudspeakers: EM 12 inch and PM 5 inch.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 13 = 1942 and before
  • Literature/Schematics (1)
  • RCA Victor Instruments Service Notes 1941-1942
