• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54908

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SG7 6SA7 6SK7 6SQ7 6SQ7 6K6GT 6K6GT 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 5.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

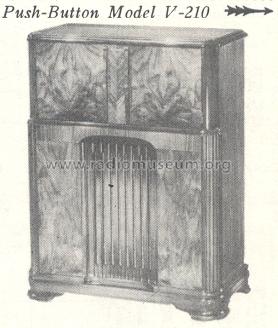

• Model: V-210 Ch= RC-573-A - RCA RCA Victor Co. Inc.; New

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 33 x 42 x 16 inch / 838 x 1067 x 406 mm

• Notes
• Pilot lamps: 2 Mazda Nº 51, 6.8V, 0.2A.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in

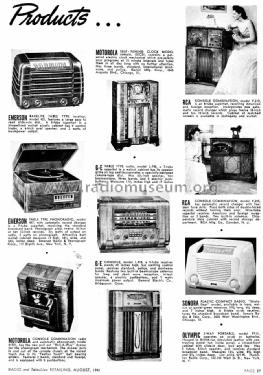

• Radio Retailing (Radio & Television R.) (August 1941.)

• Literature/Schematics (1)

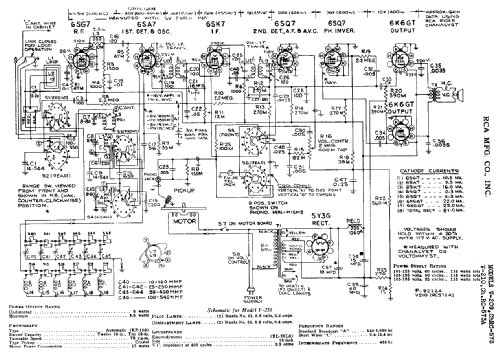

• -- Schematic (RCA Victor Instruments Service Notes 1941-1942)
